Type:2015425143157
Material :cast iron.stainless steel
Inet diameter：Max 800mm
Outlet diameter：Max 800mm
Flow：Max 11600m3/h
Operating temperature：<=80°
Solid particles：Max 10mm
Work permit pressure：<=25bar
Allow experimental pressure：<=37.5bar
Product overview

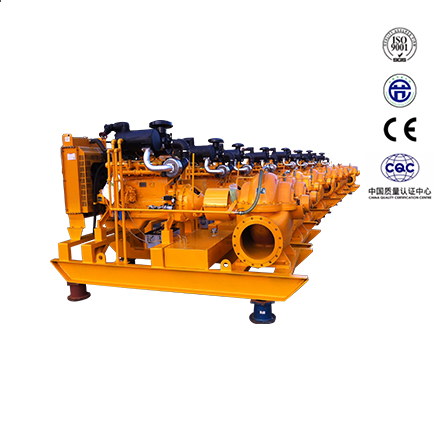

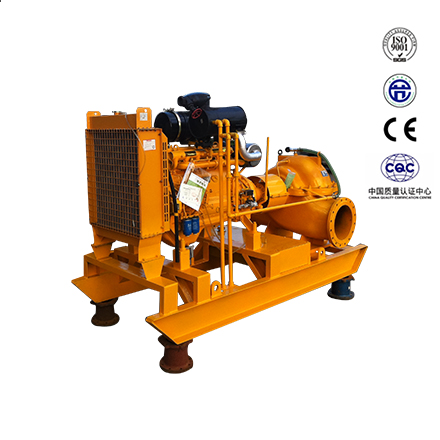

Osow pump is a single-stage double-suction volute centrifugal pump.It is mainly suitable for water supply plant, air conditioning circulating water, building water supply, irrigation, drainage pump station, power station, industrial water supply system, fire protection system, shipbuilding industry and other occasions of liquid transport, meeting the standard GB5657.
Structural characteristics of
1, compact structure, beautiful appearance, good stability, easy to install.
2. The double suction impeller with smooth operation and optimized design reduces the axial force to the minimum and has excellent hydraulic performance. After precision casting, the inner surface of the pump shell and the impeller surface are extremely smooth with significant cavitation resistance and high efficiency.
3. Domestic high-quality bearings or SKF and NSK bearings are selected for bearings to ensure smooth operation, low noise and long service life.
4. The shaft seal shall be of domestic high-quality mechanical seal or BURGMANN mechanical seal or packing seal.Mechanical seal can guarantee 8000 hours of operation without leakage.
5. There is no need to adjust during installation and assembly, but it can be used according to site conditions.Separate or horizontal mounting.
Start, stop and run
1. Start and stop
(1) before starting.The rotor of the power pump should be smooth and even."
(2) close the water alarm valve.Fill the pump with water (vacuum pump to draw water if there is no bottom valve) and make sure there is filled water in the spring.No air pockets."
(3) if the pump is equipped with a vacuum gauge or pressure gauge, close the plug connected to the pump and restart the motor, and open it after the speed is normal;Then gradually open the outlet gate valve, if the flow is too large, can be appropriately closed small gate valve for adjustment;Conversely, if the flow rate is too small, open the gate valve;
(4) tighten the compression nut on the packing gland evenly to make the liquid drip out, and pay attention to the temperature rise outside the packing chamber;
(5) when stopping the operation of the pump, first close the cock of the vacuum gauge and pressure gauge and the gate valve on the outlet pipe road, and then cut the power supply of the motor. If the temperature of the ring is lower, open the square screw plug at the lower part of the pump body to remove the remaining water to avoid freezing and cracking:
(6) disassemble the pump when it stops using for a long time, wipe the water on the parts dry, and coat the processing surface with anti-rust oil for safekeeping.
2. Operation:
(1) the water pump bearing the highest temperature should not exceed 75 ℃;
(2) the amount of calcium-based butter used to lubricate the bearing should be 1/3~ 112% of the bearing body space.
(4) check the elastic coupling parts regularly and pay attention to the temperature rise of motor bearing;
(5) in the process of operation, if noise or other abnormal sound is found, it shall immediately stop, check the reason and eliminate it;
(6) it is not allowed to arbitrarily increase the speed of the pump, but it can be used to reduce the speed. If the rated speed of the pump is n, the flow rate is Q, the head is H, the shaft power is n, the speed is n1, and the flow rate, the head, and the shaft power are Q1.
Model meaning
O SOW 150-360 (I) G A
O-----OCEAN brand
SOW---Spiral casing vertical centrifugal pump(or horizontal centrifugal pump)
150---Outlet diameter of pump 150mm
360---Nominal diameter of impeller 350mm
(I)---as flow-expanded type
G-----High Speed
A-----Impeller via first cutting
