Type:201582619730
Material :stainless steel
Inet diameter：
Outlet diameter：40mm/50mm
Flow：Max 20m³/h
Operating temperature：<=80°
Solid particles：Not allowed
Work permit pressure：<=2par
Allow experimental pressure：<=2.7par
product details:
Product selection form
application

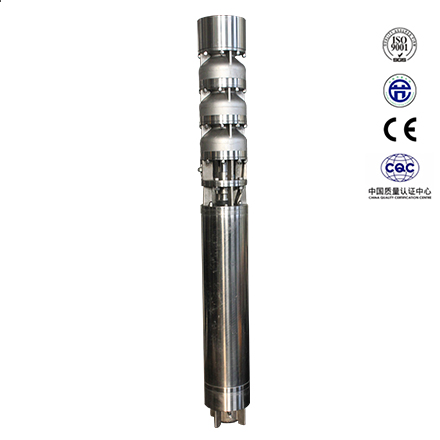

The single-phase series stainless steel deep well submersible pump is a new type of high quality product produced by the introduction of American and Italian pump technology. The main components of the pump are made of stainless steel. Ingenious design, high efficiency, corrosion resistance, non-corrosive, non-polluting, wear-resistant, can be used in factories, rural groundwater lifting, beverage and food engineering, chemical industry (please reserve when pumping acid and alkali), hydrogeology and engineering . It is also an ideal choice for pumps for agricultural irrigation.
Characteristics
1. Intelligent pumping of multi-level control system.
2. Simple operation.
3. Overload protection.
4. Energy saving: Automatically start pumping water when the water tower is in a water shortage state, and automatically stop pumping when the water tower is full.
5. Water rod protection in well water: Automatically stop the pump when the water is lacking or the water level is lower than the middle water quantity to ensure its safe operation.
6. The axial thrust load on the motor shaft is significantly reduced, and its unique “floating” structure impeller makes it possible to achieve high lift through multiple stages of impellers.
7, the pump body has a small outer diameter, large flow, high lift, suitable for small outer diameter deep wells, reducing drilling costs. More suitable for industrial and construction engineering.
8.Buit-in reliable check valve to avoid water hammer impact.
9. It adopts stainless steel pump and alloy rubber bearing, which has strong wear resistance.
10. Multiple protection mute technology. Can be used quietly.
Instructions
1. Never test the motor without being completely immersed in water.
2. Neber uses the motor in lightning weather.
3. Higher solid content in a longer period of time
Well water (solids content should not exceed 0.01% of total mass)4. Applicable water temperature: 2 ° C ~ 40 ° C. Keep the pump and motor if the hot water temperature of the pump is 60 °C (only for 4" motors with less than 10 horsepower)
5. Must use automatic control cabinet (or no warranty)
.6. Please fully fill in the clean water before using the 6" water-filled motor.
7. Power: single phase, 50HZ and 60HZ; 220V~240V
Three phase, 50HZ and 60HZ; 360V-400V
If you need a special voltage, please let us know in advance.
Working condition
1. Power
(1) If rated frequency is 50 HZ, rated voltage of motor end shall ensure for 380± 5% v with three phase ac power (need special order if the voltage is 660V).
(2) Transformer load power should not exceed 75% of its capacity
(3) When transformer is far from the well, pressure drop of the transmission lines should be considered, if the power is greater than 45 kw, transformer to the wellhead distance should no more than 20 meters, when more than 20 meters, transmission line specification should be 2 levers higher than cable specification, line pressure drop should also be considered.
2. Water quality
(1) no corrosive water in general condition
(2) sand contents0.01% ( mass ratio ).
(3) PH solution within 6.5-8.5
(4) chloride ion content less than 400mg/L
(5) hydrogen chloride contents1.5mg/L
(6) water temperatures20℃
3. Wellbore requirements
(1) straight, smooth, no bump and well tube dislocation, shaft diameter should not less than the corresponding frame size.

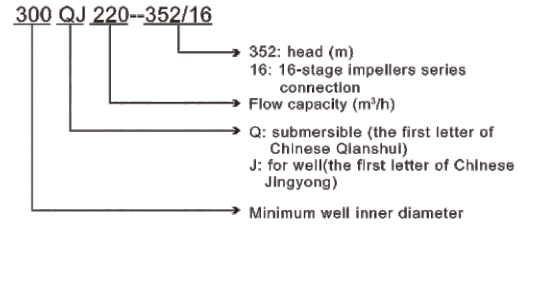

Model implication
