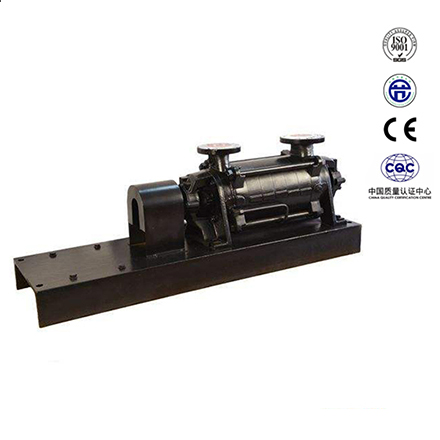

Type:D series
Material :Stainless steel. Cast iron. Alloy steel
Inet diameter：Max 300mm
Outlet diameter：Max 300mm
Flow：840m³/h
Operating temperature：-20°~150°
Solid particles：<=0.5mm
Work permit pressure：0.6Mpa
Allow experimental pressure：0.6Mpa

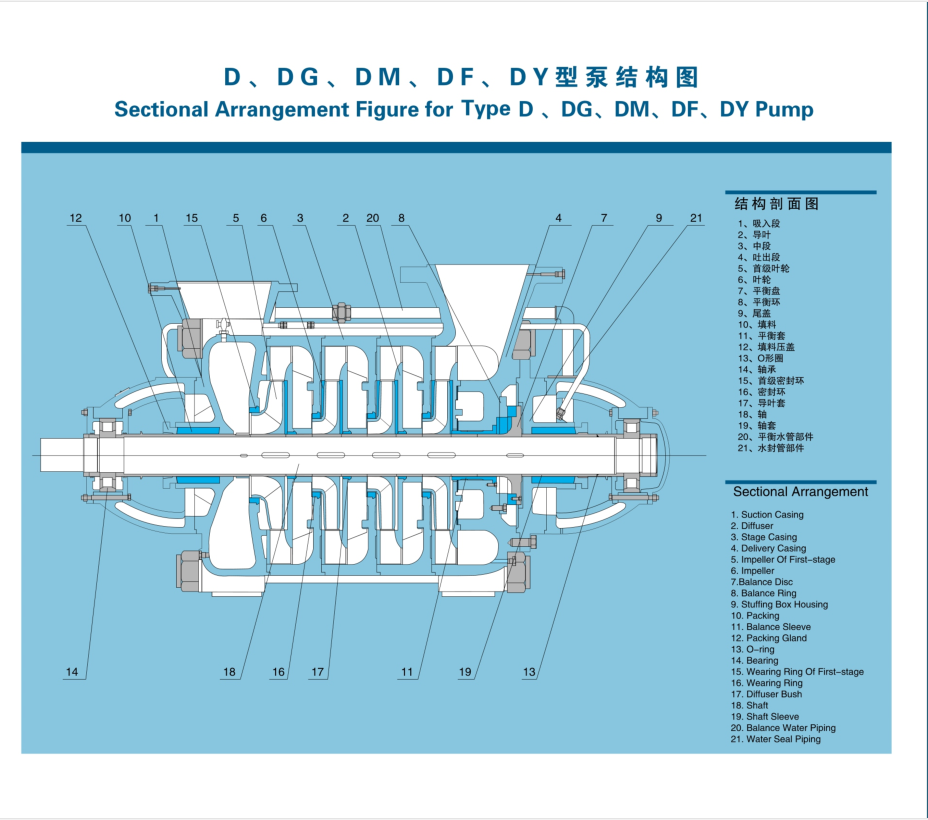

This series of pumps is a segmental multi-stage centrifugal pump, which adopts the hydraulic model of high efficiency and energy saving recommended by the state. It has high efficiency and energy saving, wide performance range, safe and stable operation, low noise and long· service life, convenient installation and maintenance, etc.; Hot water, oil, corrosive and abrasive media can be transported by changing the material of the pump (or the material of the pump overcurrent part), sealing form and adding cooling system.
D type pump can transport not containing solid particles, the temperature is not higher than 80 ℃ water or similar physical and chemical property of Yu Qingshui liquid, adapted to the mining and urban water supply and drainage engineering use.
DG type pump can transport not containing solid particles, the temperature is not higher than 105 ℃ water or similar physical and chemical property of Yu Qingshui liquid, used for boiler feed water or hot water or hot water like medium.
DM pump for conveying solid particle content of no more than 1.5% of the neutral mineral water (particle size less than0.5 mm) and other similar wastewater, the temperature of the medium to be delivered is not higher than 80 ℃, and suitable for steel mills, mining drainage, sewage, transport and other occasions.
DF type pump can transport temperature is 20 ℃ ~ 105 ℃, - not containing solid particles, corrosive liquid.
DY type pump used for conveying not containing solid particles, the temperature was 20 ℃ ~ 150 ℃, the viscosity is less than 120 mm bubble of oil and petroleum products.
The allowable inlet pressure of the above types of pumps shall not exceed 0.6mpa.
D(DG. DM. DF. DY)45O- 60x4
D-Multi-stage horizontal centrifugal pumpDM- -Multi-stage wearable centrifugal pump
DF- -Multi-stage anticorrosive centrifugal pumpDY-Multistage centrifugal oil pump450 -The flow is 450m'/h at design point
60The single stage head is 60m at design point4-The number stage is 4 stages
125D25x 5
125 -Inlet dia. is 125mm
D- -Multi-stage horizontal centrifugal pump
25 -The single stage head is 25m at design point5 -The number of stage is 5 stages
Parameter range
Flow:3.75~840m³/h
Head:19~680m
