Type:2015421145152
Material : engineering plastic
Inet diameter：Max 26mm
Outlet diameter：Max 26mm
Flow：Max 380L/min
Operating temperature：<=80°
Solid particles：Not allowed
Work permit pressure：2.2bar
Allow experimental pressure：
product details:
First, the product overview:
The MP type magnetic drive circulating pump is the crystallization of the high field of magnetic pump technology. Condensed the efforts of the designers of this unit for many years, and it is also the technical content of the magnetic pump.
The highest product.
MP type magnetic pump design features, beautiful shape, especially the bearing uses special formula ceramic materials, has a strong wear resistance and corrosion resistance, out of the magnetic
The restricted area of the force pump "no-load" is guaranteed, ensuring its advanced nature and safety.
Second, product use:
Chemical industry: sodium carbonate industry (hydrochloric acid, hypofluoric acid, production of secondary chemicals), fluoride, chemical fertilizer production, gas absorption tower reaction liquid
Systemic circulation, oil refining (sulfuric acid), waste acid recovery and regeneration system, strong acid transport between chemical plants and transportation vehicles.
Pharmacy: Production of luminescent chemicals (EL) for semiconductors, pesticides, pharmaceuticals, and water treatment chemicals.
Electroplating industry: circulating various types of plating solutions.
Photo industry: instant camera system, X-ray film, black and white, color, stereo photo.
Electrical appliances industry: the production of electrolytic capacitors (etching of aluminum film), the delivery of electrolytes in the manufacture of dry batteries and batteries.
The etching of the board, the delivery of high-purity chemical liquid in the semiconductor production process.
Metal industry: Alumina film processing equipment, wire drawing, oil removal and pickling in steel rolling: degreasing and pickling treatment before vehicle painting, titanium oxide, rare earth
Production of elements, etc.
Mining: metal smelting (transport and circulation of electrolyte), washing of waste liquid.
Food industry: production of gluconic acid (hydrochloric acid), extraction of edible oil (sulfuric acid), canned fruit (hydrochloric acid).
Medical: artificial kidney, cardio, ultrasonic cleaning machine and various medical equipment.
Water treatment: cleaning ion exchange resin, pure water production equipment, seawater desalination equipment.
Pollution control: Add sewage treatment chemicals to the liquid medicine tank, collect and transport waste liquid, exhaust gas absorption equipment (deodorization device, desulfurization before exhaust gas).
Other: Applications in silver recycling, wafer fabrication, laboratory plants, refrigerators, beverage machines, life boilers, heat exchangers, solar systems, bleaching, lasers
Systems and other fields and fountains, fish ponds, ornamental fish tanks are recycled.
Third, the model meaning:
For example: MP-20RX
MP-MP type magnetic drive circulating pump
20R-Product Specifications
X-no code is common type: M is thread interface for import and export, X is large flow type, Z is high lift type, T is special use, N is improved.
For example: MPH-400CV5-D
MP-MPH plastic magnetic drive circulating pump
40-outlet diameter code (40: outlet diameter 36mm, 42: outlet diameter 40mm)
□-Motor output power (0: 0.4kw, 1:0.75kw, 2:1.5kw, 2:2.2kw)
CV-material (bearing-carbon, pump shaft-ceramic, sealing ring-fluoro rubber)
5-code 50Hz
D-needle point contact system

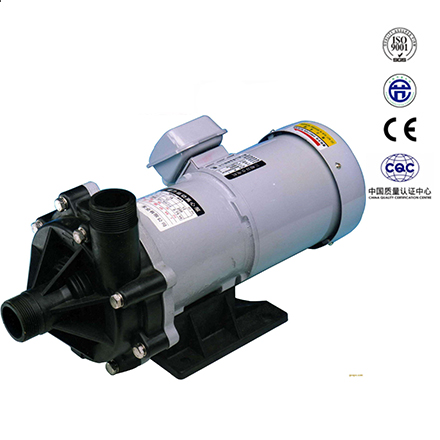

Product Image:
MP type magnetic drive circulating pump performance parameters:
Magnetic force driving circulation pump operation is on the shaft and impeller are respectively equipped with magnetic material surface to attract each other coupling, no need to match with the traditional mechanical shaft seal, so it is completely sealed, motor drive torque is driven by the active magnetic and driven magnetic gravity blade work.Today's conventional magnetic drive pump great disadvantage is absolutely prohibited in the case of a lack of liquid operation, otherwise the whole machine will be destroyed, to the user to add unnecessary trouble and trouble.The magnetic force drive pump of "ou sen pump industry" need not worry about this, it has chosen a kind of specially designed special formula ceramic as bearing, with strong friction resistance and corrosion resistance, so that its advanced performance and safety performance can be guaranteed reliably.Magnetic drive circulation pump is designed without shaft seal, which completely avoids the defects of corrosion and pollution caused by liquid leakage of traditional mechanical shaft seal pump
For example: MP-20RX
MP-MP type magnetic drive circulating pump
20R-Product Specifications
X-no code is common type: M is thread interface for import and export, X is large flow type, Z is high lift type, T is special use, N is improved.
For example: MPH-400CV5-D
MP-MPH plastic magnetic drive circulating pump
40-outlet diameter code (40: outlet diameter 36mm, 42: outlet diameter 40mm)
□-Motor output power (0: 0.4kw, 1:0.75kw, 2:1.5kw, 2:2.2kw)
CV-material (bearing-carbon, pump shaft-ceramic, sealing ring-fluoro rubber)
5-code 50Hz
D-needle point contact system
You are welcome to consult at any time
