IJ series corrosion resistant pump introduction

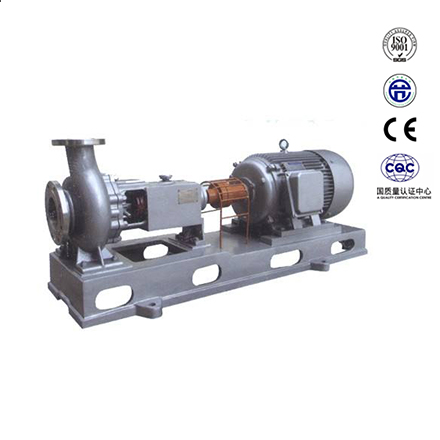

The IJ series corrosion-resistant pump is a single-stage single-suction cantilever centrifugal pump. Its marking, rated performance and size are in accordance with GB5662-85, equivalent to ISO2858-1975.

It is of the same type as the IH type promoted by the state.

use

Alkali industry: ammonia brine mother liquor produced by soda ash and ammonia chloride, room temperature caustic produced by chlor-alkali, chlorine product and chlorate, hypochlorite.

Non-ferrous metallurgy: electrolyzing copper-nickel electrolyte, producing cobalt acid mist, producing zinc mineral slurry, producing vanadium ammonium vanadate, producing gold acid and sulfuric acid liquid.

Steel industry: electroplating, pickling, waste acid treatment.

Acid industry: nitric acid, sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, etc.

Petrochemical: Petroleum refining acetaldehyde, the manufacture of alkyl benzene.

Synthetic fiber and plastics industry: polyester, polyurethane production, textile, printing and dyeing industry.

Paper industry: delivery of pulp cooking liquor and bleach.

Fertilizer industry: production of uric acid and ammonium nitrate.

Pharmaceutical industry: production of medicines and pesticides.

Environmental protection: the delivery of acid mist.

Pump structure

Pump installation instructions

    1, the structure of the pump

    1 pump body 2 impeller 3 suspension body 4 sealing ring 5 impeller nut 6 bracket 7 shaft 8 pump cover 9 mechanical seal 10 static ring gland 11 water joint 12 bolt

13 Nuts 14 Bolts 15 Bolts 16 Impeller O-rings (or gaskets) 17 Oil seals 18 Impeller keys 19 Coupling keys 20 Pump cover pads 21 Static ring gland pads

22 Impeller nut pad 23 Nameplate 24 Nail 25 Water connector pad 26 Oil seal baffle 27 Bolt 28 Pipe block 29 Bearing front cover 30 Bearing back cover 31 Water tray

32 Front cover pad 33 Rear cover pad 34 Bearing 35 Bearing 36 Retaining ring 37 Retaining ring 38 Bearing washer 39 Bolt 40 Bolt 41 Small round nut 42 Washer

43 Pore cover 44 Pipe plug 45 Oil mark 46 Oil standard gland 47 Bolt 48 Washer

    2. The direction of rotation of the pump

    From the drive end, turn clockwise and turn to the opposite of the F-type pump.

    3. Structural characteristics of the pump:

    The pump body is axially inhaled and discharged radially. The spout is connected to the shaft in a vertical plane, and the support body is cast on the pump body, and the connection is fixed on the base. Pump cover through the mouth

Fixed to the suspension body, the pump body and the suspension body clamp the pump cover. Remove the connecting nut between the suspension body and the pump body during maintenance, and the rotating part of the pump can be used in the pump body.

Exit without removing the inlet and outlet lines. This is a common chemical pump structure in the world. For large size pumps, add a middle plus between the pump coupling and the motor shaft

Long section. In this way, during the inspection, the middle section is removed, the rotor part can be withdrawn from the pump body, and the motor does not have to be moved.
