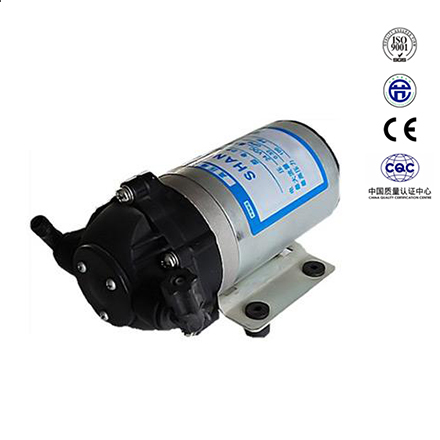

product details:

First, the product features:

1. Low noise, corrosion resistance, high pressure, self-suction height 5m.

2. The medium temperature can reach 60 °C.

3. Allow dry operation.

4. Built-in pressure switch to protect the pump from damage.

5. Built-in relief valve controls the normal operation of the pump.

6. Easy to disassemble.

7. Adopt safe low voltage to ensure personal safety.

Second, product use:

1. Suitable for domestic tap water pressurization, car washing, seawater desalination on ships.

2. Applicable to reverse osmosis pure water machine, water treatment equipment, filter, spray device, chemical metering and liquidation and health, environmental protection, printing and other industries.

Third, the installation guide:

1. When installing, you need to pull out the cover of the diaphragm pump inlet and outlet.

2. Equipped with the inlet and outlet fittings supplied with the pump, DP-130 DP-125 DP-100 DP-60 diaphragm pump inlet and outlet adopts ZG3/8′′ external teeth G29/64′′ elbow joint; DP-35 diaphragm

Pump inlet and outlet uses 3/8′′ external hose coupling.

3. The pump should be installed horizontally; if it is to be installed vertically, the pump head should be facing down.

4. Install a filter in the pump's inlet and outlet pipes, which is a guarantee for the effective use of the pump. (The DP-35 pump head has a filter installed inside, no need to install a filter).

5. The base of the pump is divided into nylon base and iron base rubber leg.

Fourth, DP micro diaphragm pump performance parameters:

Note: 1. If a user needs a 24VAC diaphragm pump, it can be stated in the order;

2. Unit conversion: GPM-gallon/min; L/min-liter/min; psi-pounds per square inch; 1 gallon (US) = 3.785 liters; 1 MPa = 145 psi

3. The company has various types of transformers. If the user does not have system transformer equipment, the transformer can be purchased to make the diaphragm pump operate normally.
